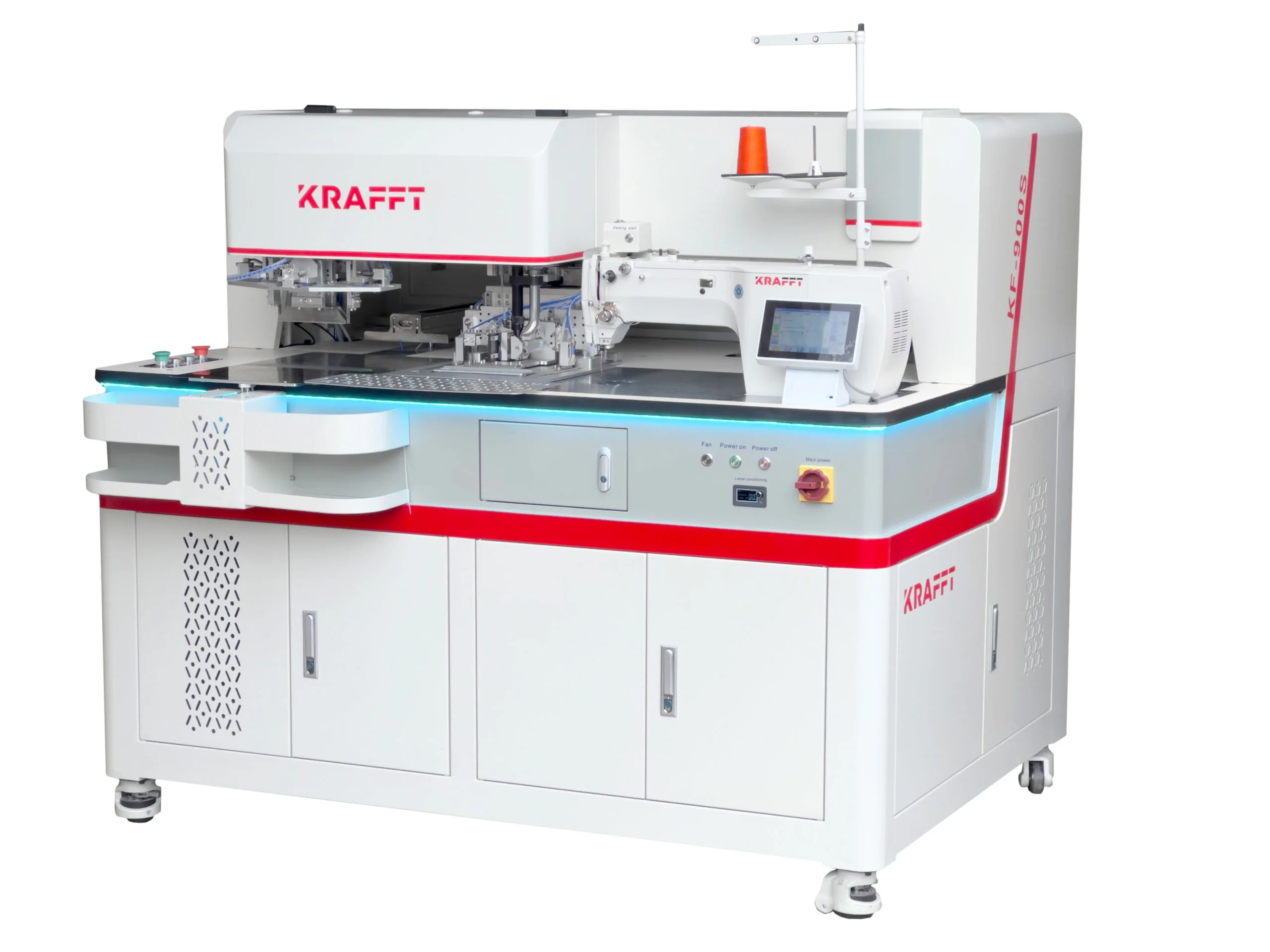

KRAFFT KF-900S Programmable Automatic Machine for Sewing Cut Pockets with Laser Cutting

Programmable automatic pocket sewing machine. The machine produces straight and diagonal cut pockets, with one or two welts, with or without a flap. It can be sewn with a zipper tape and with a pocket bag. An option for automatic pleat sewing on POLO shirts is also available.

The machine can automatically perform eight operations: cutting, ironing, folding, sewing, bartacking, attaching pocket edges, attaching pocket bags, and attaching pocket flaps, regardless of the fabric type, from lightweight to heavier.

All operating parameters, including the pocket type, are programmed on an easy-to-read control panel equipped with a USB port for entering external data or transferring settings to another machine. The machine’s memory stores 999 stitching patterns.

The pocket opening is cut before sewing using a laser integrated into the machine head. The machine is powered by energy-efficient and reliable stepper motors. Rotary hook. Technical parameters:
Sewing speed: up to 3000 stitches/min.
Needle system: DPx17 (135×17)
Presser foot lift: 28mm
Fabric cutting: 100W laser
Pin length: 3.5 – 23.0 cm
Total pin width: 1 to 3.5 cm
Power supply: 230V
Weight: 750 kg
