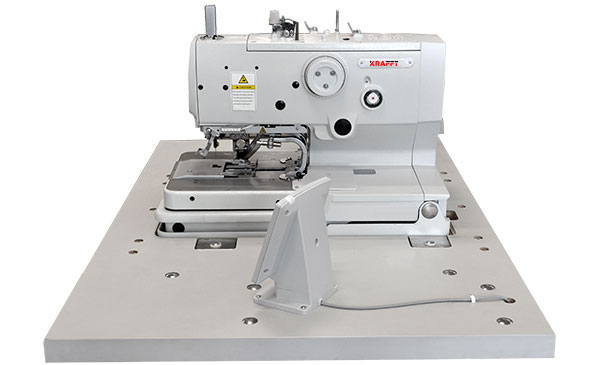

Krafft Garment Buttonhole KF-9820

This automatic, 2-thread buttonhole sewing machine features an energy-saving servo motor built into the machine head and stepper motors controlling the individual mechanisms. The machine sews buttonholes with or without a keyhole, with or without a cut before or after the hem, with or without a tacking bar, and with a cross-tacking bar.

Available subclasses:
KF-9820-01 – standard clothing buttonhole machine leaving a longer thread after cutting
KF-9820-02 – subclass for trousers and workwear leaving a short thread after cutting

Optionally, it is also possible to sew round buttonholes (only subclass KF-9820-01).

Key parameters, including buttonhole type and size, cutting method, and sewing speed, are programmed using a modern, easy-to-read control panel. Each buttonhole type can be individually programmed for its shape, width, cutting type, and more.
A cyclic sewing function allows for sewing multiple buttonholes without having to reposition the machine. Quickly changing buttonhole types without complex mechanical adjustments makes the machine ideal for short-run production with a high degree of pattern variation.

The design of the head body enables longitudinal sewing of holes on long elements.

SPECIFICATION:

sewing speed: up to 2,500 stitches/min
stitch length: 0.5-2.0 mm
overlay width: 1.5-3.0 mm
length of the sewn buttonhole (changing the length of the cut requires replacing the part)
KF-9820-01 8-42 mm (eyelet), 5-42 mm (straight buttonhole)
KF-9820-02 14-22 mm, 18-26 mm, 22-30 mm, 26.34 mm, 34-42 mm
round hole diameter (OPTIONAL for the KF-9820-01 machine) – 3mm, 4mm or 5mm
presser foot lifting height: 12 mm standard (up to 16 mm optional)
Possibility of sewing in gimp: yes
thread cutting: yes
needle system: DOx558
air consumption: 43.2 l/min (8 cycles/min)
230V power supply
connection to compressed air is required
