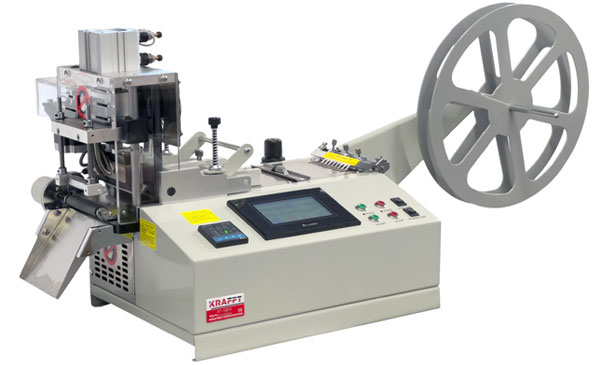

Krafft AUTOMATIC TAPE CUTTING MACHINE KF-120HX

Automatic hot-melt tape cutting device with edge embedding. The machine is designed for straight or angled cutting. Cutting angle adjustment is accurate to within 1 degree. All parameters are entered via a clear control panel with an LCD display.

Possibility to set many cutting combinations:

straight cut
bevel cutting from 0 to 45 degrees at the beginning and end of the cut element
bevel cut from 0 to 45 degrees at the beginning and straight cut at the end
Bevel cut from 0 to 45 degrees at the beginning and bevel cut from 0 to 60 degrees at the end
double-sided bevel cut from 0 to 30 degrees at the beginning and straight cut at the end
Designed for hot cutting of carrier tapes, webbing, Velcro, rubber, zipper tapes, and much more. The machine automatically measures and cuts pre-programmed lengths of tape, simultaneously sealing the edges. This is crucial when cutting materials prone to fraying (sealing the edges applies to synthetic materials, which are susceptible to melting at high temperatures).
It automatically stops when the tape runs out. This is an ideal machine for increasing efficiency and improving product quality while simultaneously saving labor, thanks to the machine’s high cutting accuracy and speed, as well as its easy control.

SPECIFICATION:

Maximum temperature: 350 degrees Celsius
Cutting length adjustment: 20 –99999 mm (controlled by a stepper motor)
Tape width: up to 90mm / 70mm (oblique cut)
Adjusting the material feed speed
Average capacity: 100 pcs/min (at 50 mm length)
Possibility of cutting two tapes simultaneously (parallel)
Programming the number of sections to be cut
Straight cut (perpendicular to the tape) or at an angle
Power: 1.0 kW
Weight: 24 kg
Power supply: 230V
