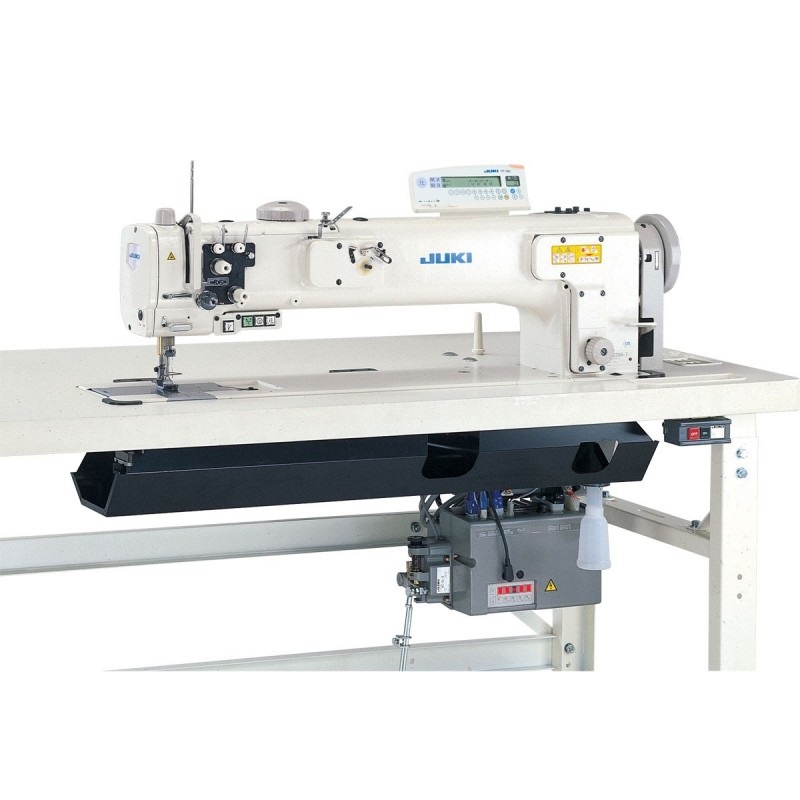

Juki LU2266NSDSB70B sewing machine

Stitch Length: 9 mm

Based on the market-proven design of the LU-2210N-7 and –2260N-7 Series, the LU-2216N-7/ –2266N-7 are developed with a longer distance from the machine arm to needle –a full 650 mm. The long arm unison-feed lockstitch machine with verticalaxis large hook with automatic Thread Trimmer is best –suited to processes that require a longer distance from the machine arm to needle, such as reinforcement stitching and topstitching in tape attachment processes for sewing furniture or car seats.

Both the LU-2216N-7 (1-needle) and LU-2266N-7 (2-needle) achieve the maximum sewing speed of 3,000 rpm. With this capability, the machine demonstrates higher productivity when sewing long lengths of materials.

With the rigidly moving knife shaft and optimal knife movement, the thread trimmer cuts thick thread without error. Moreover, no adjustment is required even when the yarn count is changed.

In processes such as the sewing of heavy materials or hard-to-feed multi-layered portions, a press on the DL switch instantly change over the vertical stroke of the walking foot and presser foot. The result is beautifully produced seams without stitch gathering.

With fully automatic lubrication, the cumbersome task of oiling the machine by hand is eliminated. Oil is forcedly circulated through the face plate by a plunger pump. This prevents oil leakage from the face plate.
