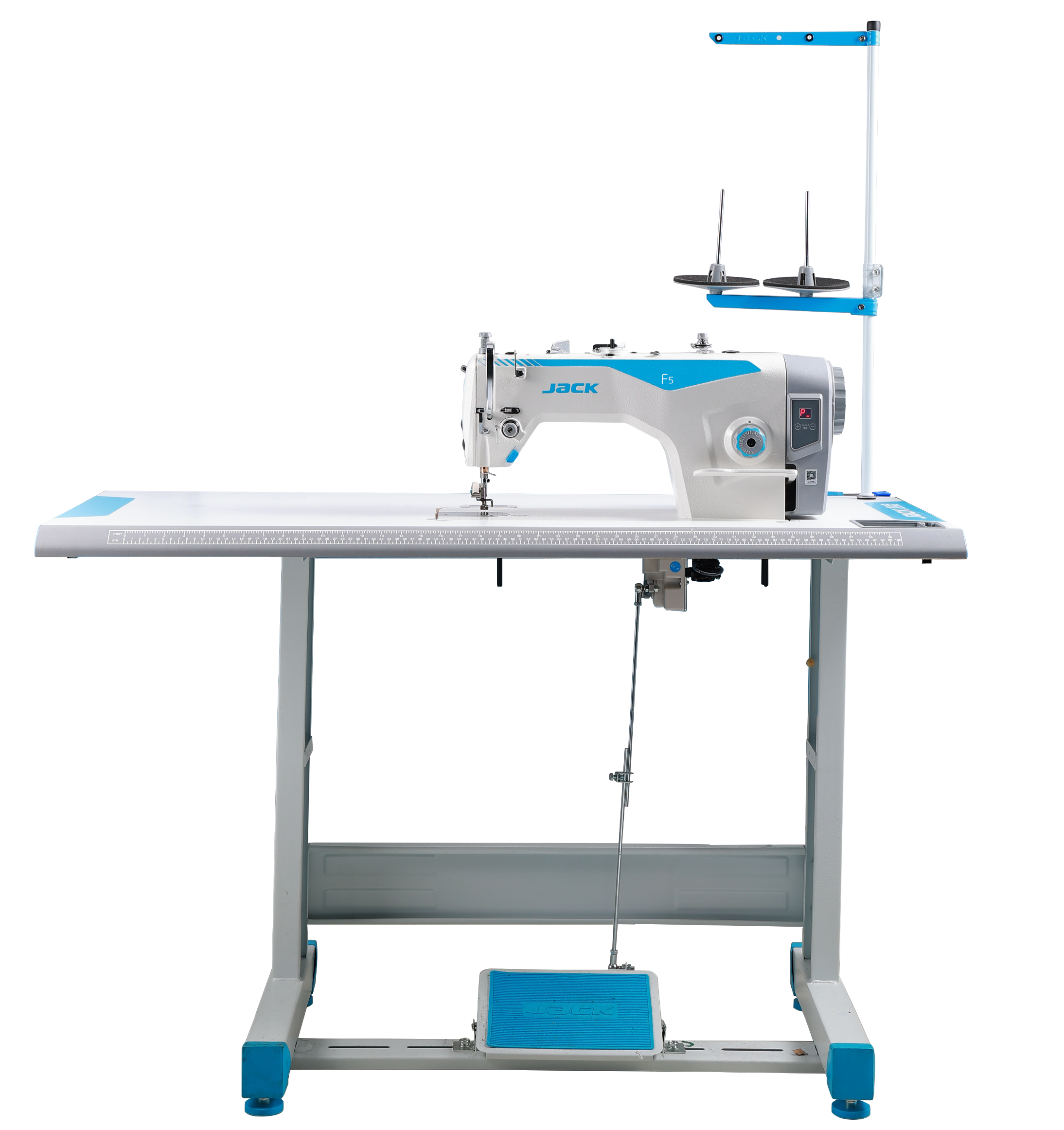

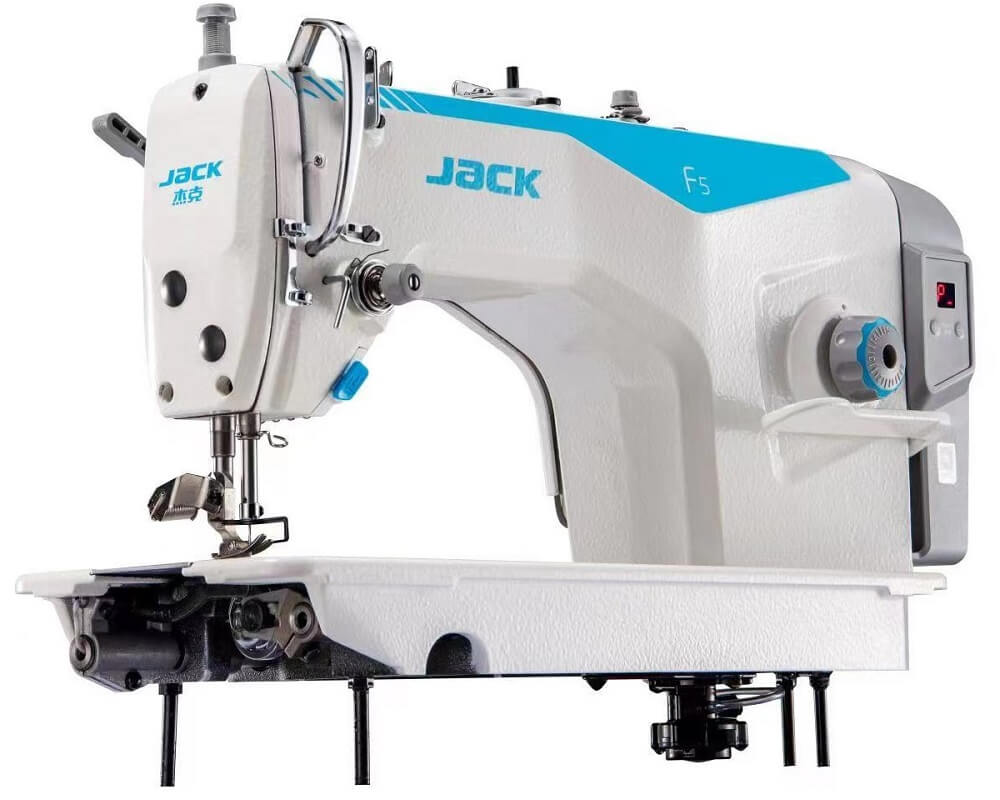

Jack F5-H — Heavy-Duty Industrial Sewing Machine

Jack F5-H — Heavy-Duty Industrial Sewing Machine

The Jack F5-H is the heavy-duty variant of the Jack F5 series, built for reliable, high-performance sewing on medium-to-very heavy materials. It combines a rugged, compact design with industrial features — direct, low-vibration drive, robust construction and user-friendly controls — so you get smooth, precise seams on demanding jobs such as upholstery, heavy garments and technical textiles.

This H-model is configured for heavier needles and fabrics (DP×5 needle system, sizes 18–21) and tuned for stable, powerful stitching at an industrial working speed. Adjustable stitch length, digital speed control and practical on-machine conveniences (thread cutter, adjustable LED light, integrated bobbin winder and needle-stop control) make it easy to work accurately and efficiently.

Key features

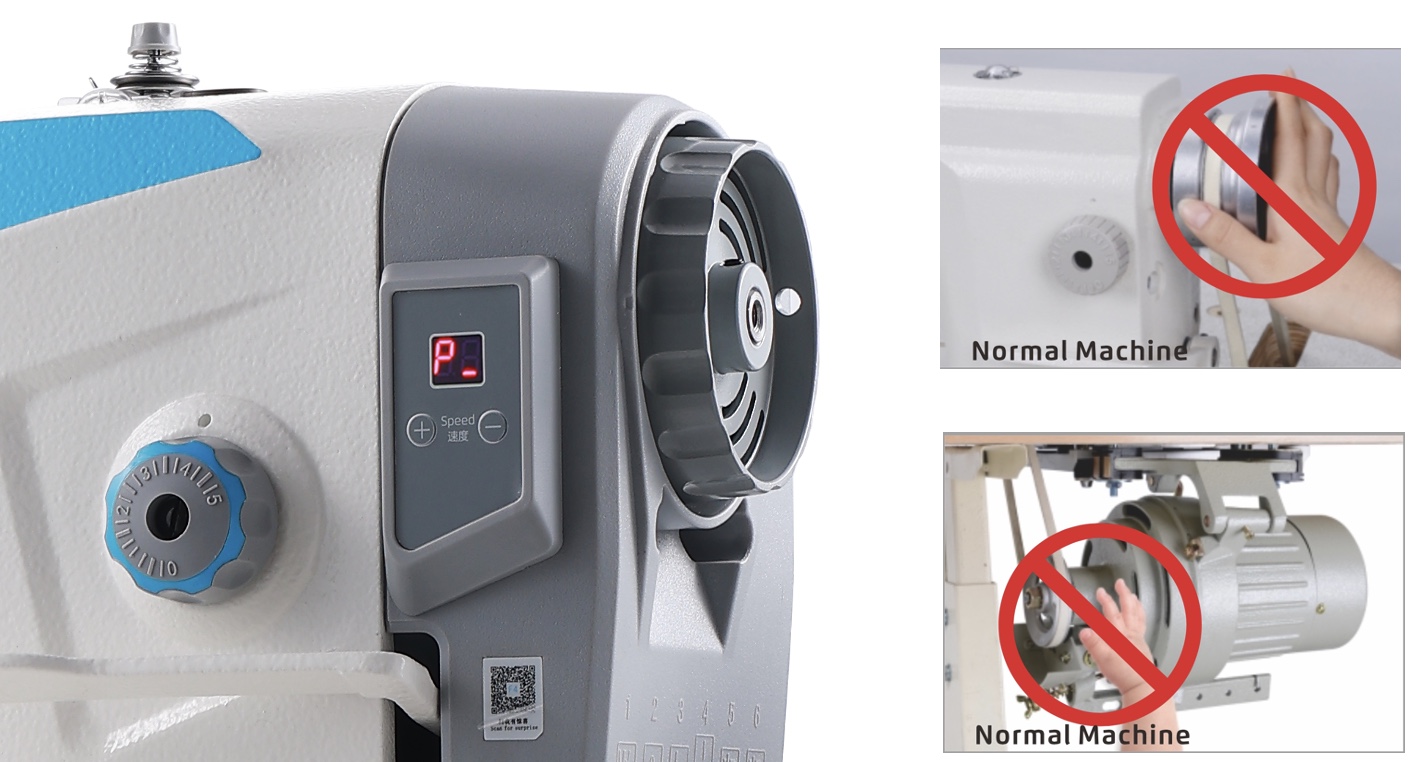

Direct-drive design: quiet, low-vibration operation and compact, integrated motor.

Heavy-duty configuration: needle system DP×5 (18–21#) for heavy fabrics.

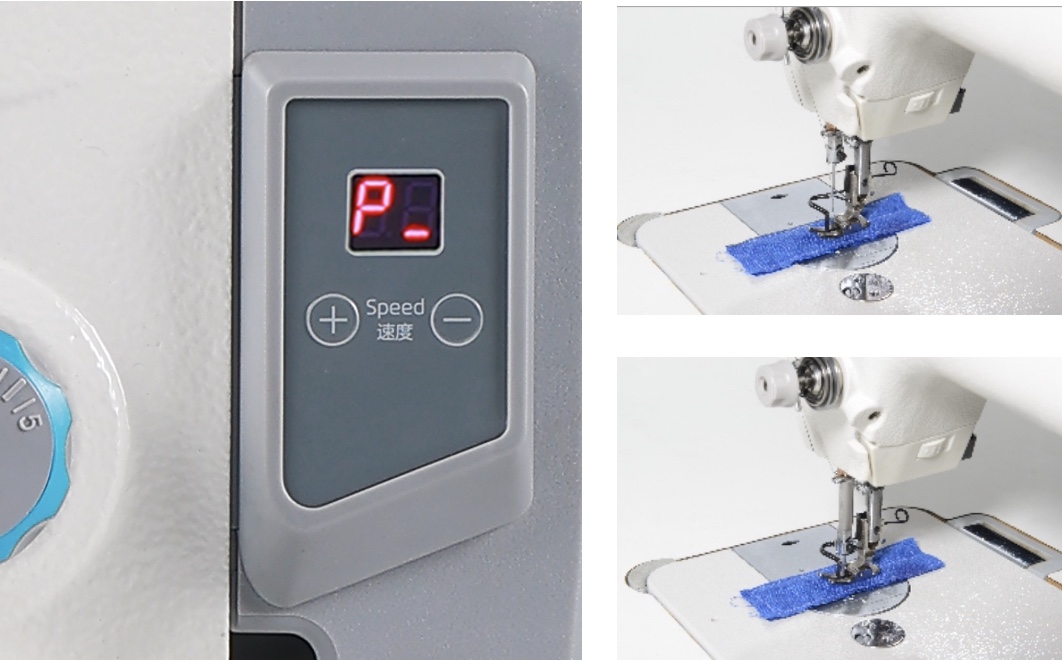

Digital speed adjustment with real-time display for precise control.

Needle position control (stop needle up or down), integrated thread cutter and adjustable LED lighting.

Built for tough work: robust construction and settings tailored to heavy-duty sewing.

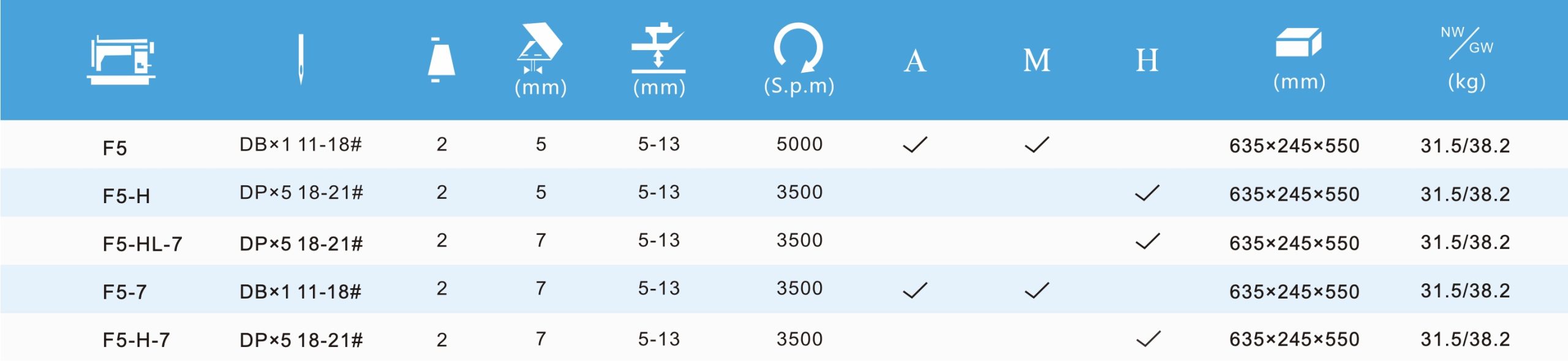

Quick specifications

Needle system: DP×5, sizes 18–21#

Thread/loop capability: 2-thread configuration (machine setup)

Stitch length range: 5–13 mm

Stitch width / other setting (preset): 5 mm (model configuration)

Maximum speed: 3,500 stitches per minute

Machine dimensions: 635 × 245 × 550 mm

Net / Gross weight: 31.5 / 38.2 kg
