Jack A6F-E, A6F-EH Sewing Machine

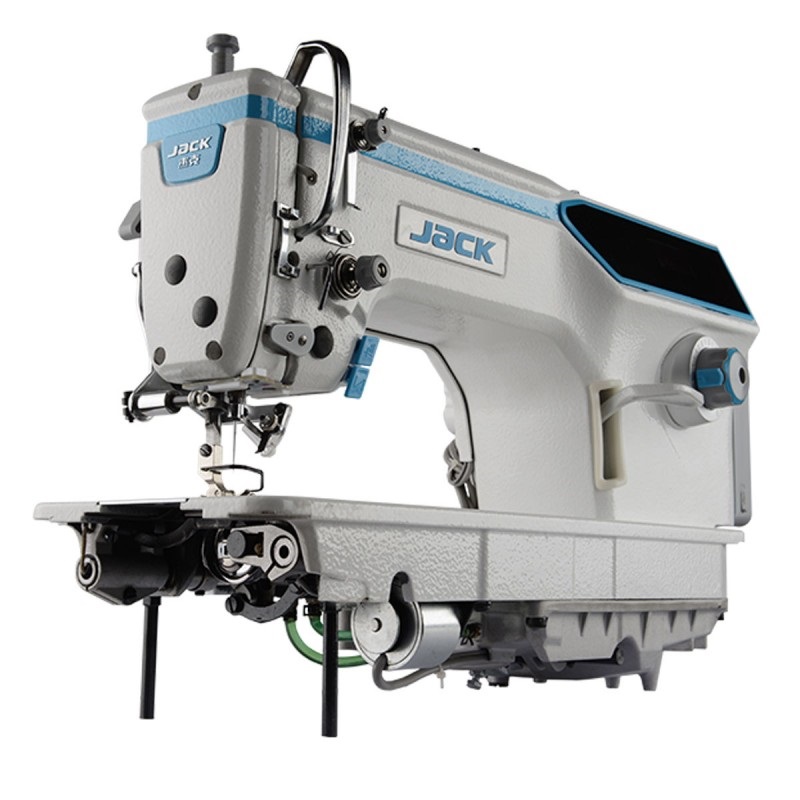

ack A6F / A6F-H – Specialized Automatic Lockstitch Machine with Dual Transport and Expanded Workspace

The Jack A6F / A6F-H is a specialized automatic 1-needle lockstitch machine designed for medium and heavy materials. Featuring both needle-feed and drop-feed transport, it ensures smooth and even fabric movement, even when sewing thick or layered materials. The extended 30 cm distance between the body and the needle bar provides additional workspace, making the machine ideal for handling larger projects.

Equipped with a Direct Drive energy-saving servo motor integrated into the machine head, the A6F runs quietly, reliably, and consumes significantly less energy than traditional clutch motors. A closed lubrication system eliminates the need for a standard oil pan – reducing oil usage, improving lubrication efficiency, and protecting fabrics from contamination.

The machine also includes LED work area lighting and a USB port, enabling users to connect external devices such as a phone or small fan. In the E series, a stepper motor precisely controls stitch length and bartacking functions, ensuring high accuracy (up to 0.1 mm) and quieter operation during bartacking.

Automatic functions:

Thread trimming

Needle positioning

Initial and final bartack

Automatic presser foot lift

Technical Specifications:

Sewing speed: up to 3,500 stitches/min

Stitch length: up to 4.5 mm

Presser foot lift height: 5–13 mm

LED integrated lighting

USB port for charging / data transfer

Needle system: DPx5

Power supply: 230V

The Jack A6F / A6F-H combines strength, precision, and smart automation, making it the perfect solution for professional workshops specializing in heavy-duty sewing.
