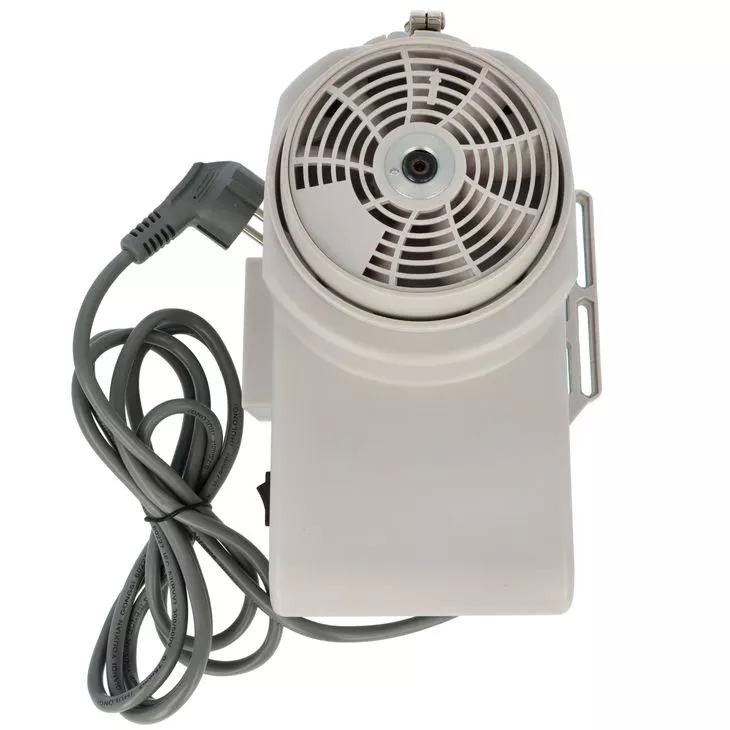

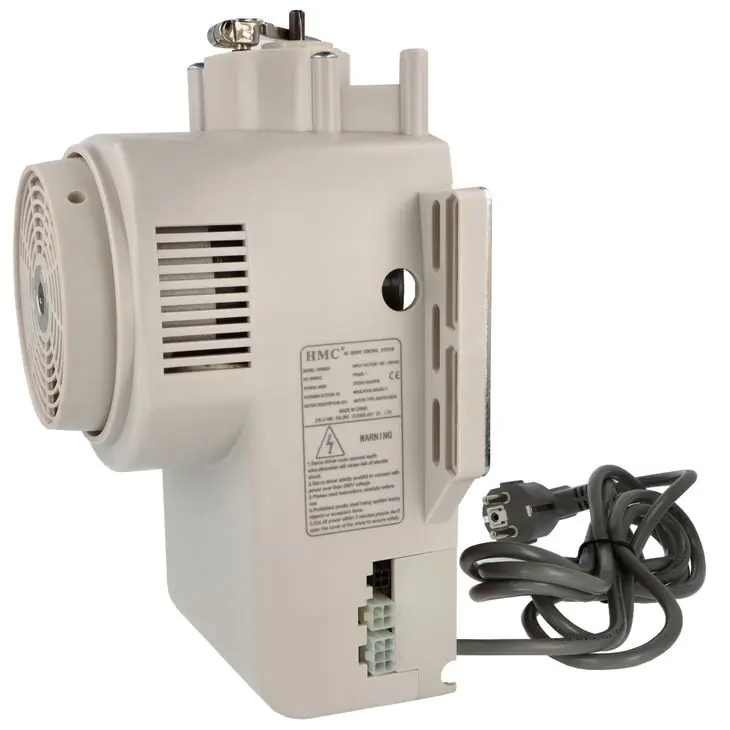

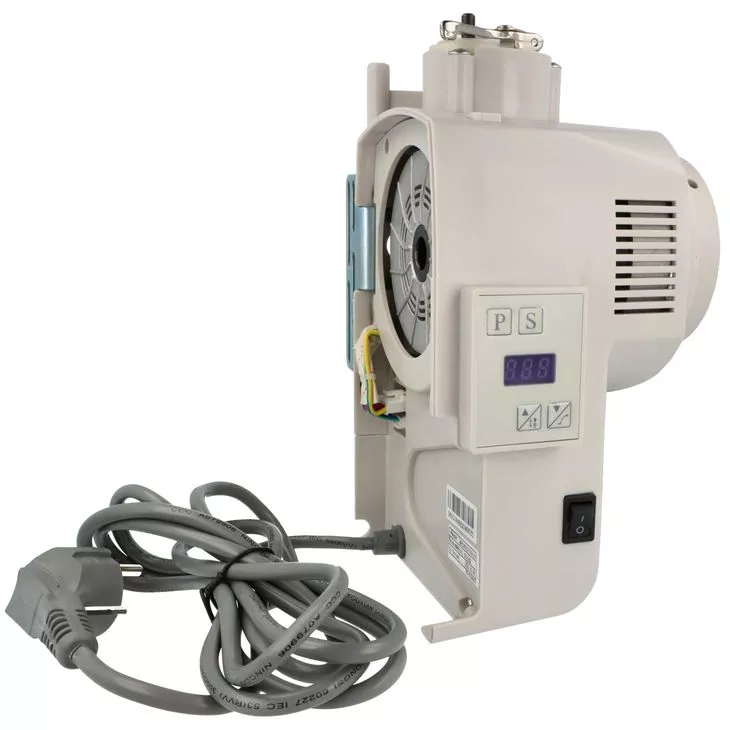

DD servo motor for DDL8700 series overlockers WR580

The WR580G servo motor is a universal motor designed for sewing machines, mounted directly on the arm. It is primarily used in lockstitch machines, most commonly in the JUKI 8100 and 8700 series.
These servo motors are characterized by high durability thanks to the use of neodymium magnets (the magnets do not wear out, unlike brushed motors) and energy savings of up to 70% compared to traditional clutch motors. The motor has a power of 550W and is additionally equipped with a needle positioner, a stitch start button, and LED lights mounted on the needle bar.

Motor Features:
Energy savings of up to 70%
Smooth, precise, and easy control of the sewing speed using the foot pedal. Low inertia ensures precise torque control.
Maximum speed setting (300 – 5000 rpm)
Easy installation and adjustment
Low noise and vibration
Needle positioning for increased sewing efficiency, precision, and productivity
Simple rotation direction setting and positioning function activation
Reliability
Overload protection
Power supply: 230V
Warranty: 12 months Download
